윈도우 서버 NTP, Vsphere AD 설정, BGP 토폴로지 구성

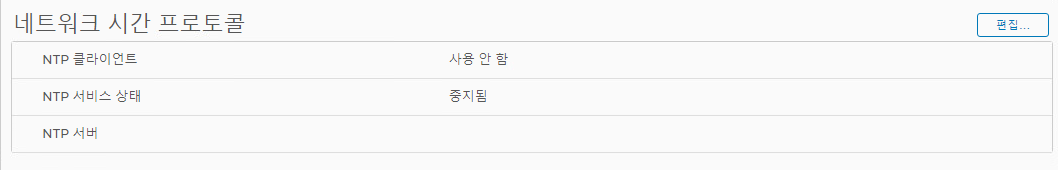

> 윈도우 서버 NTP 설정 W32tm /config /manualpeerlist:time.windows.com /syncfromflags:manual /reliable:yes /update W32tm /resync /rediscover Net stop w32time && net start w32time 만일 기관에 NTP 서버가 존재 한다면 :time.windows.com 부분에 해당 IP입력



> Domain 정보 등록

1. 도메인 구분

win2016 - vsphere.local -> Administrator@vsphere.local.com

       sso - sso.local

2. Restart

https://vcsa7.vsphere.local:5480 -> vcenter management

---

> Vsphere AD 설정

1. Vsphere > 관리

2. Single Sign On > 구성 > Active Directory 도메인

3. vsphere.local.com / Administrator@vsphere.local.com / P/W입력

4. vcsa7.vsphere.local.com:5480 ( = vSphere 관리자 페이지 )에서 Reboot

5. 다시 vsphere 로그인 후 Single Sign On > ID 소스 > ID 소스 추가에서 추가한 VSPHERE.LOCAL.COM 확인 후 추가

6. Single Sign On > 사용자 및 그룹 > VSPHERE.LOCAL.COM 에서 administrator 확인



---

BGP 연습 토폴로지



R3 interface Loopback0  ip address 1.1.1.1 255.255.255.0 ! interface Ethernet0/0  ip address 10.10.10.1 255.255.255.0 ! interface Ethernet0/1  ip address 10.10.20.1 255.255.255.0 ! interface Ethernet0/2  no ip address  shutdown ! interface Ethernet0/3  no ip address  shutdown ! router bgp 65103  bgp router-id 1.1.1.1  bgp log-neighbor-changes  network 1.1.1.0 mask 255.255.255.0  network 10.10.10.0 mask 255.255.255.0  neighbor 10.10.20.2 remote-as 65104	R4 interface Loopback0  ip address 2.2.2.2 255.255.255.0 ! interface Ethernet0/0  ip address 10.10.20.2 255.255.255.0 ! interface Ethernet0/1  ip address 20.20.10.1 255.255.255.0 ! interface Ethernet0/2  ip address 20.20.20.1 255.255.255.0 ! interface Ethernet0/3  no ip address  shutdown ! router ospf 100  redistribute static subnets  network 2.2.2.2 0.0.0.0 area 0  network 20.20.10.0 0.0.0.255 area 0  network 20.20.20.0 0.0.0.255 area 0 ! router bgp 65104  bgp router-id 2.2.2.2  bgp log-neighbor-changes  network 2.2.2.0 mask 255.255.255.0 //ospf 정보를 bgp로 넘겨줌  neighbor 3.3.3.3 remote-as 65104  neighbor 3.3.3.3 update-source Loopback0  neighbor 4.4.4.4 remote-as 65104  neighbor 4.4.4.4 update-source Loopback0  neighbor 5.5.5.5 remote-as 65104  neighbor 5.5.5.5 update-source Loopback0  neighbor 10.10.20.1 remote-as 65103 ! ip forward-protocol nd ! ! no ip http server no ip http secure-server ip route 1.1.1.0 255.255.255.0 10.10.20.1 ip route 10.10.0.0 255.255.0.0 10.10.20.1
R5 interface Loopback0  ip address 3.3.3.3 255.255.255.0 ! interface Ethernet0/0  ip address 20.20.10.2 255.255.255.0 ! interface Ethernet0/1  ip address 20.20.30.1 255.255.255.0 ! interface Ethernet0/2  no ip address  shutdown ! interface Ethernet0/3  no ip address  shutdown ! router ospf 100  network 3.3.3.3 0.0.0.0 area 0  network 20.20.10.0 0.0.0.255 area 0  network 20.20.30.0 0.0.0.255 area 0 ! router bgp 65104  bgp router-id 3.3.3.3  bgp log-neighbor-changes  network 3.3.3.0 mask 255.255.255.0  neighbor 2.2.2.2 remote-as 65104  neighbor 2.2.2.2 update-source Loopback0  neighbor 4.4.4.4 remote-as 65104  neighbor 4.4.4.4 update-source Loopback0  neighbor 5.5.5.5 remote-as 65104  neighbor 5.5.5.5 update-source Loopback0	R6 interface Loopback0  ip address 5.5.5.5 255.255.255.0 ! interface Ethernet0/0  ip address 20.20.20.2 255.255.255.0 ! interface Ethernet0/1  ip address 20.20.40.1 255.255.255.0 ! interface Ethernet0/2  no ip address  shutdown ! interface Ethernet0/3  no ip address  shutdown ! router ospf 100  network 5.5.5.5 0.0.0.0 area 0  network 20.20.20.0 0.0.0.255 area 0  network 20.20.40.0 0.0.0.255 area 0 ! router bgp 65104  bgp router-id 5.5.5.5  bgp log-neighbor-changes  network 5.5.5.0 mask 255.255.255.0  neighbor 2.2.2.2 remote-as 65104  neighbor 2.2.2.2 update-source Loopback0  neighbor 3.3.3.3 remote-as 65104  neighbor 3.3.3.3 update-source Loopback0  neighbor 6.6.6.6 remote-as 65104  neighbor 6.6.6.6 update-source Loopback0
R7 interface Loopback0  ip address 4.4.4.4 255.255.255.0 ! interface Ethernet0/0  ip address 20.20.30.2 255.255.255.0 ! interface Ethernet0/1  ip address 20.20.40.2 255.255.255.0 ! interface Ethernet0/2  ip address 30.30.10.1 255.255.255.0 ! interface Ethernet0/3  no ip address  shutdown ! router ospf 100  redistribute static subnets  network 4.4.4.4 0.0.0.0 area 0  network 20.20.30.0 0.0.0.255 area 0  network 20.20.40.0 0.0.0.255 area 0 ! router bgp 65104  bgp router-id 4.4.4.4  bgp log-neighbor-changes  network 4.4.4.0 mask 255.255.255.0  neighbor 2.2.2.2 remote-as 65104  neighbor 2.2.2.2 update-source Loopback0  neighbor 3.3.3.3 remote-as 65104  neighbor 3.3.3.3 update-source Loopback0  neighbor 5.5.5.5 remote-as 65104  neighbor 5.5.5.5 update-source Loopback0 ! ip forward-protocol nd ! ! no ip http server no ip http secure-server ip route 6.6.6.0 255.255.255.0 30.30.10.2 ip route 30.30.0.0 255.255.0.0 30.30.10.2	R8 interface Loopback0  ip address 6.6.6.6 255.255.255.0 ! interface Ethernet0/0  ip address 30.30.10.2 255.255.255.0 ! interface Ethernet0/1  ip address 30.30.30.1 255.255.255.0 ! interface Ethernet0/2  no ip address  shutdown ! interface Ethernet0/3  no ip address  shutdown ! router bgp 65105  bgp router-id 6.6.6.6  bgp log-neighbor-changes  network 6.6.6.0 mask 255.255.255.0  network 30.30.30.0 mask 255.255.255.0  neighbor 30.30.10.1 remote-as 65104 ! ip forward-protocol nd ! ! no ip http server no ip http secure-server ip route 0.0.0.0 0.0.0.0 30.30.10.1



---
